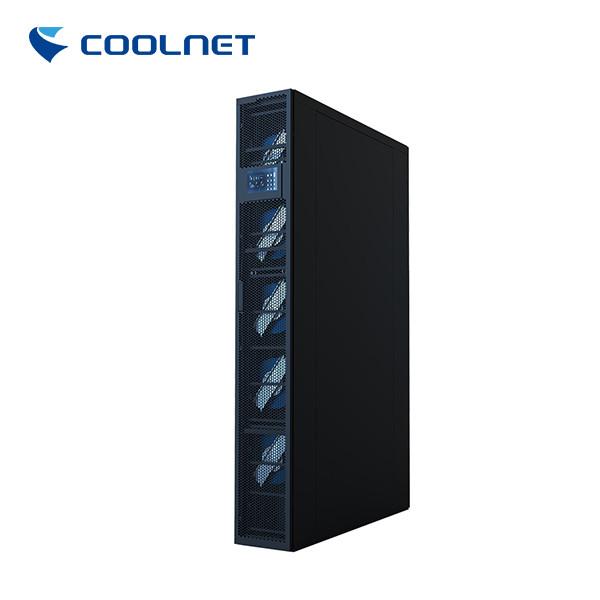

Computer Room Server Rack Cooling Unit Row-Based Cooling

Brand Name : COOLNET

Model Number : CR012

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1set

Price : 1800-30000USD

Payment Terms : T/T, L/C

Supply Ability : 300 PCS PER MONTG

Delivery Time : 10-25 working days

Packaging Details : Packed in plywooden case, standard export package

Cooling capacity : 20-50KW

Mounting : Floor Standing

Type : InRow Unit

Operating voltage : 380/400 VAC,230 VAC,220V

Warranty : 1 Year

Product name : Inrow Type Precision air conditioning

Refrigerant : R410A

Application : Data Center, IT room , Computer room, Cold/hot aisle

Color : Black/Grey

Fan type : EC fan

Power : 3N-380V-50Hz,220v/50hz/60hz

Airflow : Front Flow

Voltage : 380v/220v,220V/380V,380V/415V

Contact Now

Computer Room Server Rack Cooling Unit Row-Based Cooling

Product Introduction

CoolRow is a in-row cooling solution commonly used in data centers requring higher density cooling with greater efficiency and capacity. The unit is placed beteween the servers in a row for offering cooling close to the heat load, the horizontal airflow pattern supports hot aisles and cold aisles configeration. CoolRow improves the efficiency of the overall cooling systems and ensures the steady room temperature for precise operation.

Features

Quick response
Close to the heat source for cooling, monitor heat load changes in real time, quickly adjust the cooling output, and adapt to the load demand.


Excellent control logic
Accurate, safe and energy-saving frequency conversion control logic ensures the accuracy and stability of the target ambient temperature and humidity, while achieving the ideal energy-saving purpose.

Powerful controller
The market-leading independent research and development control system, which responds quickly and smoothly, meets most of the needs of users.

 Computer Room Server Rack Cooling Unit Row-Based Cooling
Computer Room Server Rack Cooling Unit Row-Based Cooling

Structure & Component

Computer Room Server Rack Cooling Unit Row-Based Cooling

DC Inverter Compressor of DX System

  • Dynamic cooling to adapt to the rapidly changing load of the computer room;

Backward Centrifugal EC Fan

  • Compared with ordinary standard AC motors, the electronically commutated synchronous EC motors can save energy by 30%;

Electronic Expansion Valve

  • Smoothly adjust the throttle opening, matched with variable capacity compressor to achieve energy saving;

Technical Parameter

Model CRA013A CRA020A CRA040A CRA050A CRA060A
Air supply Front/Side Front/Side Front Front Front
Power supply 380VAC/3Ph/50Hz
Cooling capacity-KW 13.2 26.7 42.6 53.3 63.9
Sensible cooling-KW 13.2 26.7 42.6 53.3 63.9
Compressor
Refrigerant R410A
Quantity 1
Fan
Fan type EC Centrifugal fan
Quantity 4 5 2 3 3
Air volume-m3/h 3200 5000 8800 11000 12500
Heater
Heat type PTC
Capacity-KW 2 3 6 6 6
Humidification
Capacity-KW 1 1.5 3 3 3

Certificates

Computer Room Server Rack Cooling Unit Row-Based Cooling

Factory Details

Computer Room Server Rack Cooling Unit Row-Based Cooling

Delivery & Packing

Computer Room Server Rack Cooling Unit Row-Based Cooling

Cases

Computer Room Server Rack Cooling Unit Row-Based Cooling
